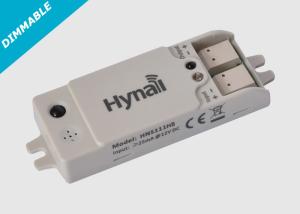

1 ~ 10v Dimming Dimmer Sensor Switch Highbay Range Remote Setting

Brand Name : Hynall
Model Number : HNS111HB
Certification : RED, FCC, RoHS
Place of Origin : Shenzhen
MOQ : 200pcs
Price : Negotiable
Payment Terms : T/T
Supply Ability : 50,000pcs / month
Delivery Time : 4 weeks for bulk orders
Packaging Details : Bubble bag + carton. (color box or blister package also available on request)
Input voltage : 12V DC (5V & 24V version available on request)
Input current : ≥25mA
Control type : 1~10v dimming
Detection range : Max. 18m in diameter
Mounting height : Max. 15m
Dual daylight sensor : Yes
HF frequency : 5.8GHz
Product guarantee : 5 years
Contact Now

1 ~ 10v Dimming , Dimmable Motion Sensor , Highbay Range , Remote Setting

Specially designed for highbay fixtures(warehouse lamp / canopy / shoebox / gas station lamp / stadium lamp, etc), built-in use, Reinforced detection range up to 12~15m high, infrared remote to change all the settings, with daylight monitoring function.


Input voltage 12V DC (5V & 24V DC version available on request).

Input current:≧25mA.

1~10V dimming signal. (5V DC high-low voltage & PWM output version available on request)

Dual-processor technology, real Lux -Off & Daylight monitoring function for built-in application.

IR remote commissioning, easy setting and user friendly.

Detection range up to 18m in diameter.

Mounting height: Max. 15m.

Operation temperature: -20℃ ~ +70 ℃

Settings(by remote control IR12)--

Permanent ON/OFF function

Press ON/OFF button, fixture goes to permanent on or permanent off mode, sensor is disabled.

*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.

Dim +/-

Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.

*after desired brightness is locked down, if user wants to dim again reversely, just press the Dim button again and then lock down the new brightness again.

Sensor mode

Press Auto button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.

Reset function

PressReset button, all settings go back to factory default settings.

Ambient learn

Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.

Test mode

"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.

Users can quit this mode by pressing "ON/OFF", "Reset' or any button of "Hold time". The sensor settings are changed accordingly.

In this mode, when used for on/off control, after motion detected, sensor enters into a cycle of 3s on and 2s off. In this mode, when used for tri-level dimming control, after motion detected, sensor enters into a cycle of 3s on and 2s off(0.5s soft off + 1.5s off).

Detection pattern--

Daylight monitoring function--

Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, switch on automatically(even without movements) when the ambient light is below target value, and then switch off automatically whenever the artificial light is not required (ambient light is bright enough).

Note: Lux-Off sampling time—30s; Lux-On sampling time—10s.

Lux-On function takes effect only when standby dimming period set at +∞.
