1 ~ 10V Dimming Output 12V Microwave Sensor Daylight Monitoring Function

Brand Name : Hynall
Model Number : HNS101D
Certification : RED, FCC, RoHS
Place of Origin : Shenzhen, China
MOQ : 300pcs
Price : To be negotiated
Payment Terms : T/T
Supply Ability : 50,000pcs / month
Delivery Time : 3~4 weeks for bulk orders
Packaging Details : Bubble bag + carton. (color box or blister package also available on request)
Input voltage : 12V DC (5V & 24V version available on request)
Input current : ≥25mA
Control type : Tri-level dimming control
Detection range : Max. 12m in diameter
Mounting height : 3~6m
Operation temperature : -20℃ ~ +70℃
Contact Now

1 ~ 10V Dimming Output , 12V Microwave Sensor , Daylight Monitoring Function

12V DC input motion sensor with 1~10v dimming output and DIP switch setting, dual-processor technology to differentiate the natural light and lamp light, daylight monitoring function available.


5.8GHz C-band microwave, tri-level dimming function.

Input voltage 12V DC (5V & 24V DC version available on request).

Input current:≥25mA.

1~10V dimming output.

Super compact, flexible to be integrated into any suitable fixtures.

Dual-processor technology, real Daylight monitoring function for built-in application.

8 pin DIP switch setting, multiple options to meet different customer demands.

Detection range up to 12m in diameter.

Mounting height: 3~6m.

Operation temperature; -20℃ ~ + 70℃.

RoHS compliant.


Detection range

Detection range can be reduced by selecting the combination

on the DIP switches to fit precisely each application.


Hold-time means the time period to keep the lamp on 100% after motion detected.

*when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range. In this mode, the daylight sensor is disabled, when there is no motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.

Daylight sensor

Daylight sensor means the daylight threshold to enable or disable the sensor function.

"Disable": The sensor works always, even during daylight.

"50lux": The sensor works only in twilight.

"10lux, 2lux": The sensor works only in the dark.

Stand-by period

This is the time period that the lamp remains at a low light level before it is completely switched off in the long absence of people.

“+∞”: means bi-level dimming control, the fixture never switch off.

Stand-by dimming level

This is the dimmed low light level you would like to have after the hold-time in the absence of people.

Detection pattern--

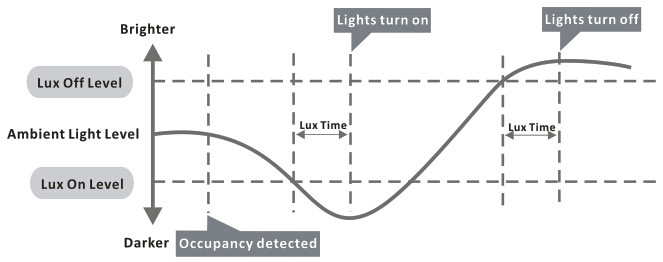

Daylight monitoring function--

Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, switch on automatically(even without movements) when the ambient light is below target value, and then switch off automatically whenever the artificial light is not required(ambient light is bright enough).

This is the REAL & INTELLIGENT daylight monitoring sensor for built-in installation.

Note: Lux-Off sampling time—30s; Lux-On sampling time—10s.

Lux-On function takes effect only when standby dimming period set at+∞.
