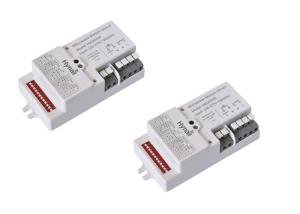

Long Distance High Bay Occupancy Sensor , Microwave Sensor Module 120~277V AC

Long Distance High Bay Occupancy Sensor , Microwave Sensor Module 120~277V AC

Brand Name : Hynall
Model Number : HNS203HB
Certification : RED, FCC, RoHS, ETL
Place of Origin : Shenzhen, China
MOQ : 300pcs
Price : To be negotiated
Payment Terms : T/T
Supply Ability : 30,000pcs / month
Delivery Time : 3~4 weeks for bulk orders
Packaging Details : Bubble bag + carton. (color box or blister package also available on request)
Input voltage : 120~277V AC
Detection range : Up to 18m in diameter
Mounting height : 10~12m
IP rating : IP20
Usage : High bay and UFO
Type : high bay motion sensor
Contact Now

2019 new design microwave motion sensor for high bay big distance motion sensor


Up to 12~15m high for reinforced detection range

specially designed for highbay fixtures (warehouse lamp / canopy / shoebox / gas station lamp / stadium lamp, etc).


Size:


Features:

1.Input voltage:AC 120〜277V
2.Rated load:

400W@120VAC (capacitive)

800W @ 200〜277VAC (capacitive)

3.Stand-by power:<1w
4.Detection range:Max.18m in diameter
5.Mounting height:Up to12m
6.Operation temperature:-20℃~ +70℃
7.IP rating:IP20

8. 5.8GHz C-band microwave

9.Dual-processor technology for built-in application.

10. Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.

11. RoHS compliant.


Settings:


Detection range: 100%, 75%, 50%, 25%

Hold time: T3s, 30s, 90s, 5min,10mi,30min

Daylight sensor: Disable, 50lux, 10lux, 2lux

Stand-by period: 10s, 5min, 10min, 30min,1H, +

Stand-by dimming level: 0%, 10%, 30%, 50%

Wiring diagram:

Detection pattern



Daylight monitoring function:


Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, switch on automatically(even without movements) when the ambient light is below target value, and then switch off automatically whenever the artificial light is not required(ambient light is bright enough).


This is the REAL & INTELLIGENT daylight monitoring sensor for built-in installation.
